PowerShield®
High Voltage Cable Protection Rolls
PowerShield® is developed as a lightweight alternative for the protection of high voltage cables.
PowerShield® Rolls
PowerShield® HV Cable protection rolls are lightweight rolls, for protection of High Voltage Cables. The roll dimensions can be tailor-made for both width (upto 2.00 m) and length (upto 250 m) for ease of installation.
Product Data Sheet
| PowerShield® 4.0 | ||
| Mechanical Properties | ||
| Thickness | 4.0 mm | |
| Tensile strength (MD&CMD) | MD 167.2 MPa / 133.6 MPa | EN ISO 527 |
| Elongation (MD&CMD) | MD 14.0% / CMD 16.9% | EN ISO 527 |
| Diagonal Elongation | 21.7% | |
| Impact testing | ||
| Hammer penetration | <50 mm (TenneT) | DIN EN 50520 |
| Specimen Break | 4 times no break | DIN EN 50520 |
| Electrical Properties | ||
| Electrical breakdown volt. | 58 kV/mm | EN 53843 |
| Electrical Resistance | 16 ohmcm | EN 53843 |
| Dielectrical constant | 2.1 (100 Hz) | EN 53843 |
| Roll Dimensions | ||
| Roll width (mm) | maximum width 2000 mm | |
| Roll length (m) | Tailor made (10-250 m) | |
| Weight | 1.5 kg/sqm |
PowerShield® versus competition
Powershield® Testing
DIN50520
Easy to connect
Easy to cut
It took almost 4 years, before this development was marketproof.
We are convinced that this concept with PowerShield® rolls will change the installation market for high voltage cable protection.
Rob Albers
Co-inventor PowerShield®
The new standard in protection of HV cables
- PowerShield® Rolls are lightweight, flexible, and easy to deploy.
- The PowerShield® system does not include memory storage.
- PowerShield® width can vary between 30 cm and 200 cm.
- PowerShield® length can be varied between 1 and 250 m.
- It’s easy to cut PowerShield® with a sharp ”carpet-knife”.
- PowerShield® has a low carbon footprint, as compared with other protection plates.
- If required, a yellow tape with warning text can be added on the PowerShield® rolls.
FAQ’s
Does PowerShield® comply with DIN50520 and does it meet the TenneT requirements?
PowerShield® is developped for complying with DIN50520. As PowerShield® consists of multiple layers, it was possible to choose the amount of layers for meeting the TenneT requirement (maximum penetration of 50 mm).
How is it possible that such a lightweight and thin product meets the requirements?
PowerShield® is developped combining the technolgies for composites and technical textiles. This patented technology has resulted in this unique product.
Is it easy to install PowerShield®?

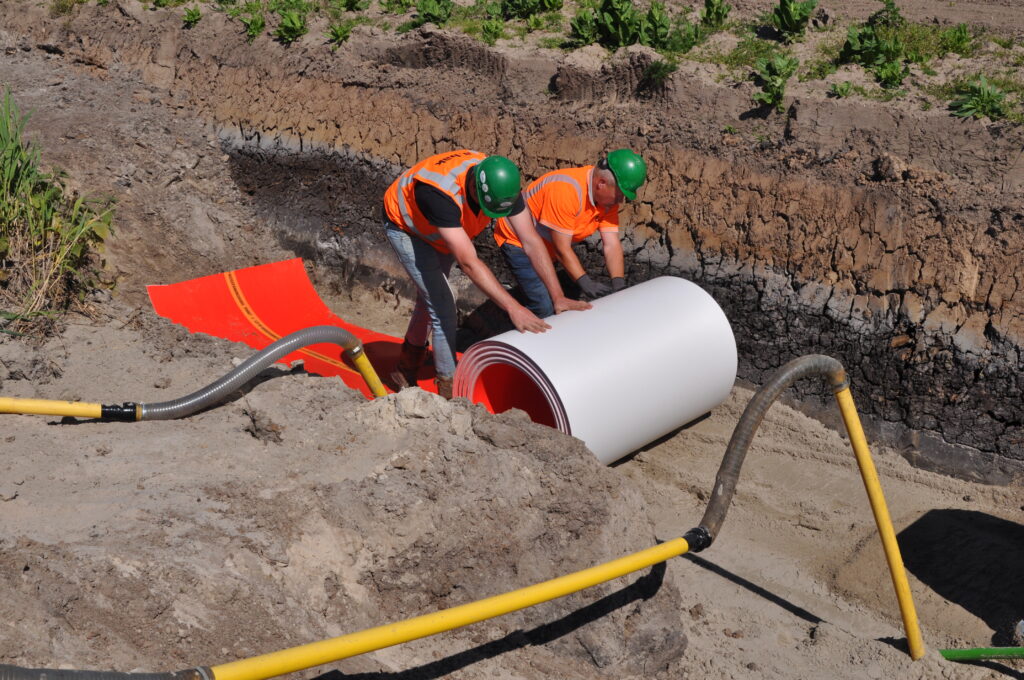

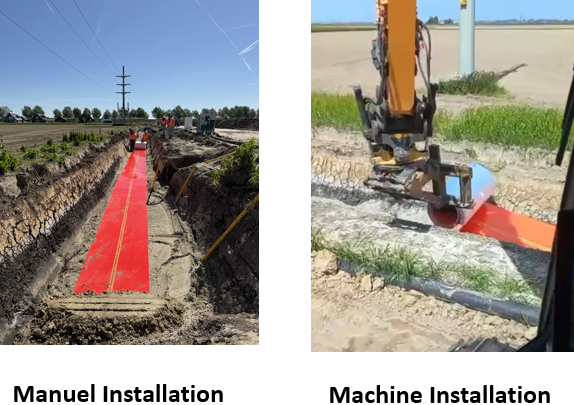

PowerShield® can be supplied in different roll dimensions, with a maximum width of 2.00 m and a maximum roll lenght of 250 m. For long rolls (f.e. 1.0 m width and 100 m. length) special installation equipment will be required, as the rolls will be too heavy for manual installation (1×100 m roll = 150 kg). It is also possible to produce smaller rolls, which can be installed manually. A roll of 1×10 m. will have a weight of 15 kg., a roll of 1×5 m. will weigh only 7.5 kg.
Where can I order PowerShield®?
For more information about PowerShield®, the product properties and product availability, you can contact Rob Albers of Abco Consultancy BV. Rob is the co-inventor of the product and responsible for sales in Europe and the Middle East.
